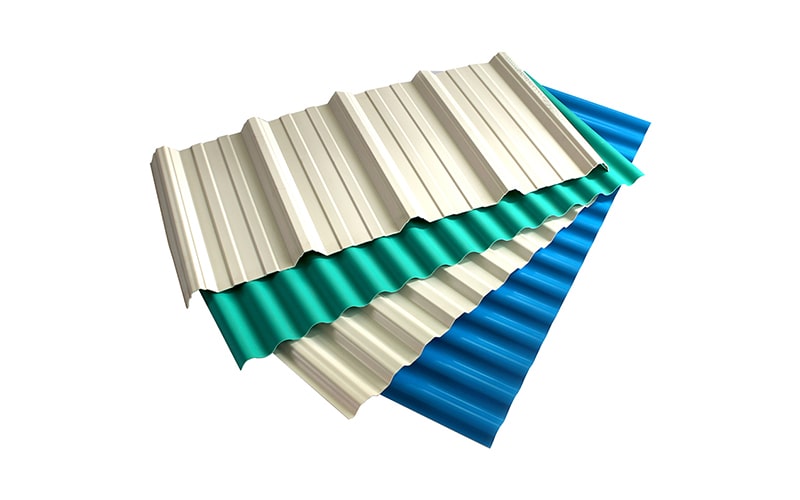

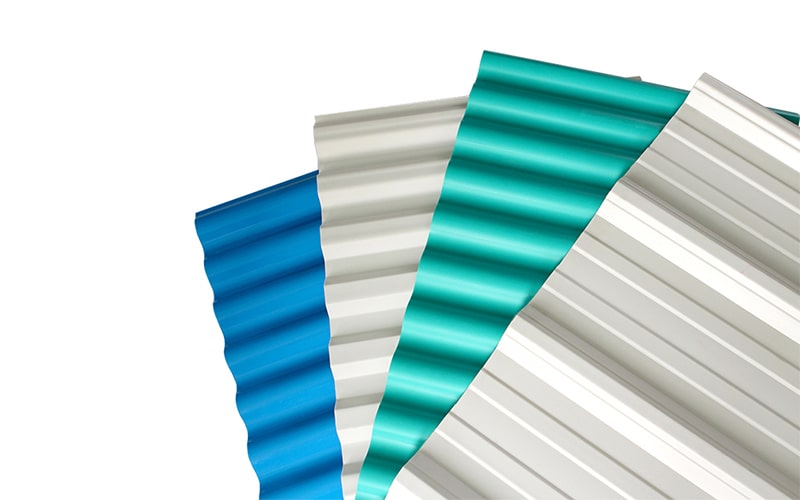

UPVC roof tiles are extruded from rigid polyvinyl chloride (PVC) with precision decorative surface treatment. This advanced processing endows the tiles with outstanding wear resistance, anti-static performance, UV stability and strong impact resistance.
As a globally proven mainstream roofing solution, GOEATE/GAOZHU UPVC roof tiles are produced with advanced three-layer one-step co-extrusion technology, making them an ideal building material for projects requiring long-term thermal insulation.
UPVC Roof Tile Advantages
1. Superior Corrosion Resistance Highly resistant to acid, alkali and various chemical corrosions. Perfect for chemical factories, coastal zones and acid‑rain-prone areas.
2. Reliable Weatherproof Performance The dense structure delivers complete waterproofing with zero water penetration. Custom profiles are available for heavy rainfall regions to adapt to extreme rainy weather.
3. Strong Load-Bearing & Impact Resistance Features excellent structural stability. The tile remains intact with no cracks or deformation under a 150kg static load.
4. B1 Grade Fire Retardancy Certified B1 flame-retardant level. The material is self-extinguishing and effectively inhibits fire spread, meeting standard construction fire safety requirements.
5. Effective Sound Insulation Reduces outdoor noise by up to 30dB compared with traditional color steel tiles, providing a quieter indoor environment during heavy rain and strong winds.
6. Outstanding Thermal Insulation
- Ultra-low thermal conductivity of 0.325w/m·k: 1/310 of clay tiles, 1/5 of cement tiles, and 1/2000 of 0.5mm color steel sheets.
- Fully sunlight-proof structure blocks heat radiation.
- Three-layer composite structure greatly improves overall heat insulation efficiency.
Applications

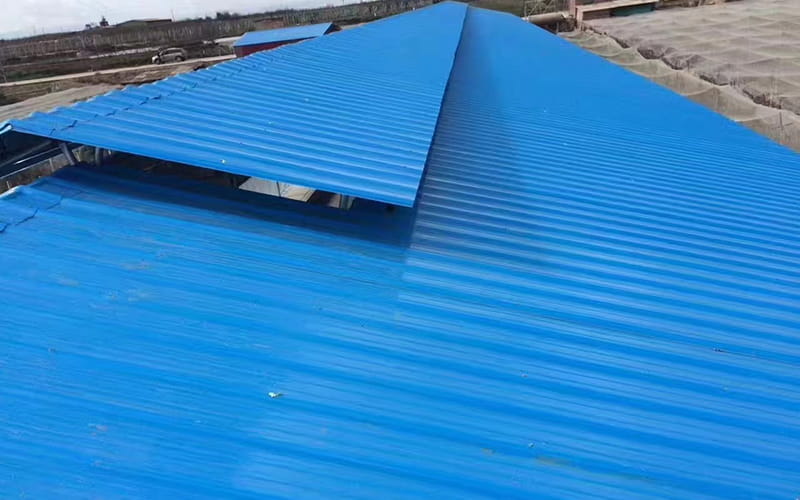

Factory buildings, warehouses, chemical plants, residential buildings, scenic spots, agricultural buildings, farmhouses, livestock houses, parking sheds and cottages.
Installation Instructions & Notes
- All UPVC roof tiles must be installed with our dedicated waterproof accessories.
- Use 4–6 sets of waterproof fasteners per square meter. All screws shall be fixed on wave crests with moderate tightness — firm enough not to be loosened by hand.
- Install waterproof fasteners on every wave crest for ridge tiles, vertical overlaps and eaves.
- In strong wind areas, side wall panels without flashing boards must be reinforced with steel straps.
- For wall sheet installation, fix the overlap between each two purlins with two rivets.
- Hook installation requires matched sealing gaskets under the sheets. Fasten screw nuts moderately to avoid over-tightening deformation or loose sealing.

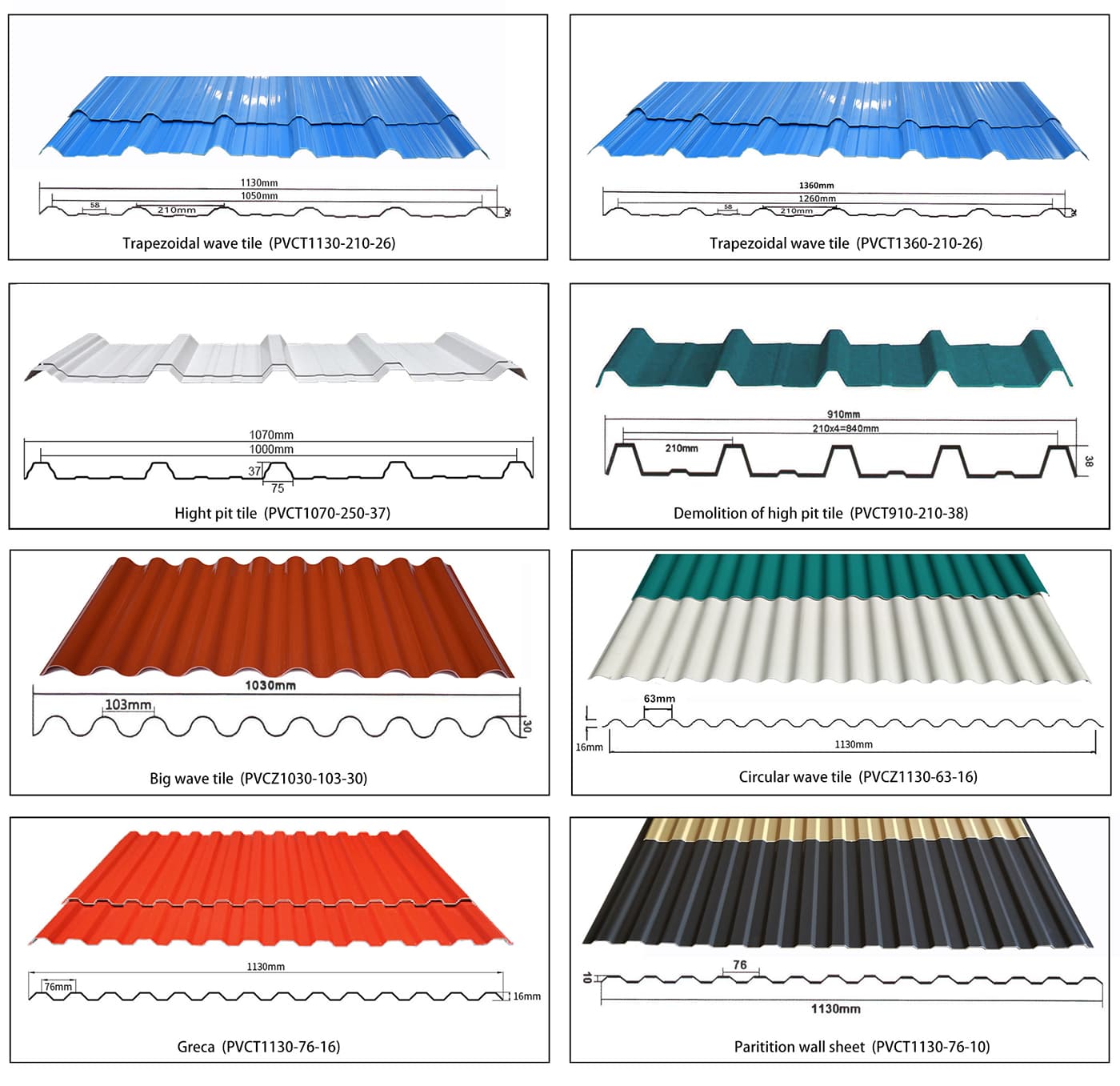

Profile
Accessory
1. Top Ridge
GOEATE / GAOZHU have different kind of ridge tile mode which ensure our ridge tile would 100% match with our PVC roof tile.

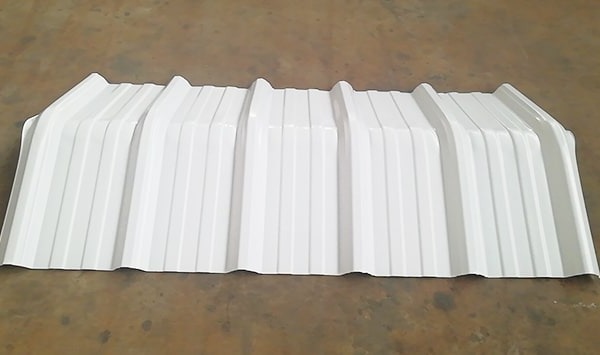

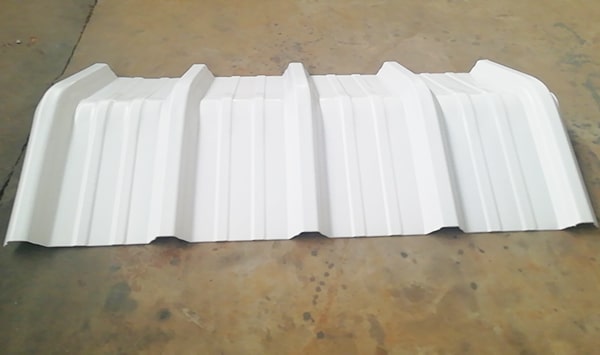

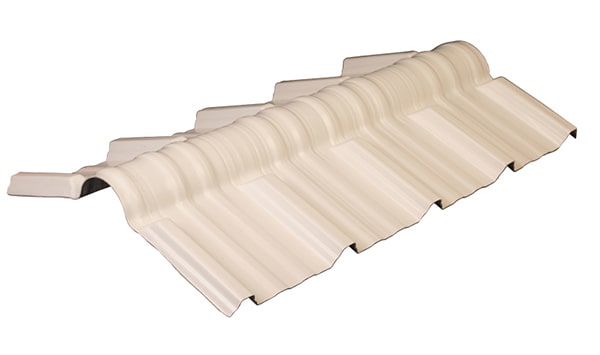

The popular one is PVCT130-210-26 and PVCT1010-250-37 profile. While PVCT1010-250-37 have two design mold. This first one is with dome which make the ridge tile are more flexibility and durable. It is a new design.
2. Waterproof Accessory
waterproof accessories including sealing cap, sealing cover, sealing ring, and screw.
