ROMA RESIN ROOF TILE
Date: 29/04/2026 Categories: ASA Synthetic Resin Tile、Product Views: 2605
Goeate/Gaozhu Synthetic Resin Roof Tiles
Classical & Chinese-style synthetic resin roof tiles are mainly made of high weather-resistance ASA engineering plastic (ASA material from SABIC, one of the Fortune Global 500 enterprises) and PVC (polyvinyl chloride resin). Formulated with anti-UV agents, stabilizers, antioxidants, modifiers and other high-performance weather-resistant additives.
The tile is manufactured with advanced European triple co-extrusion technology in a single forming process, consisting of three layers:
- 1、Surface layer: ASA layer
- 2、Middle layer: Structural backbone layer
- 3、Bottom layer: Abrasion-resistant layer
Product Features
1、25-Year Service Life Warranty, 10-Year Color Retention Warranty Goeate/Gaozhu synthetic resin roof tiles are produced with imported high weather-resistance engineering resin, delivering exceptional durability under natural conditions. They maintain stable color even with long-term exposure to UV radiation, moisture, high and low temperatures.
2、Superior Corrosion Resistance Resistant to erosion by acids, alkalis, salts and various chemicals. Lab tests confirm no chemical reaction after 2 hours of immersion in acid, alkali and salt solutions with concentrations ≤60%. Ideal for coastal regions and areas with frequent acid rain.
3、Effective Sound & Thermal Insulation Tests verify outstanding noise absorption during heavy rain and strong winds, together with reliable thermal insulation performance.
4、High Flame Retardancy Classified as Class B1 flame-retardant material, tested and certified by the national fire authority.
5、Excellent Load-bearing Capacity For cold climate regions, the tile surface remains intact without cracking or damage even under year-round snow cover. Tests: No cracking or damage occurs under a 150 kg load with support spacing of 660 mm.
Greastest Characteristics
Synthetic resin tile adopts Europe advanced coextrusion technology, using ASA high weather resistant engineering plastic and PVC (polyvinyl chloride resin) as main material, mixing anti-UV agent, shielding agent, antioxidant, modifier and other super weathering chemical ingredients.
Color

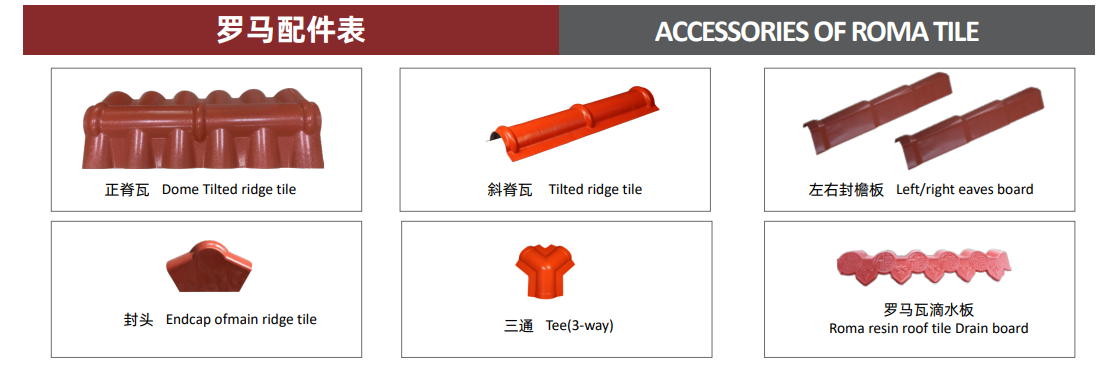

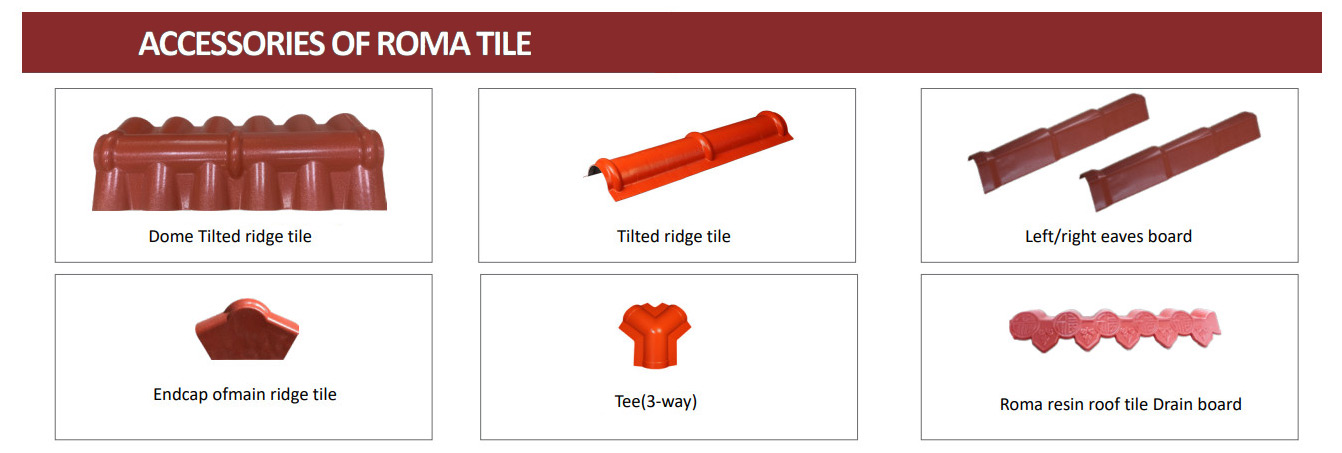

Accessories
Installation Instructions
1.Purlins can be square tubes (60×40×3 mm), steel sections (100×50×20×3 mm) or anti-corrosion battens (60×40 mm).
2.The spacing between purlins is 660 mm. Purlins shall be installed from bottom to top.
3.Take local wind direction into consideration; install the main tiles against the prevailing wind. Lift one tile wave and perform the operation on both sides simultaneously. For main ridge tile installation, cut a section off the first ridge tile prior to mounting.
4.During installation, the joint between main ridge tiles and inclined ridge tiles shall be trimmed to achieve a smooth finish. Fit main ridge tiles and inclined ridge tiles before installing the 3-way tee fitting. Fasteners are dedicated special accessories.
5.For fixing: pre-drill holes. The hole diameter shall be 2–3 mm larger than the diameter of the fixing screw.
Application
Widely applied in scenic rural areas, old house renovation & reconstruction, tourist attractions, gardens, villas, prefabricated homes, pavilions, farms, flat-to-slope roof conversion and more.
Parameter

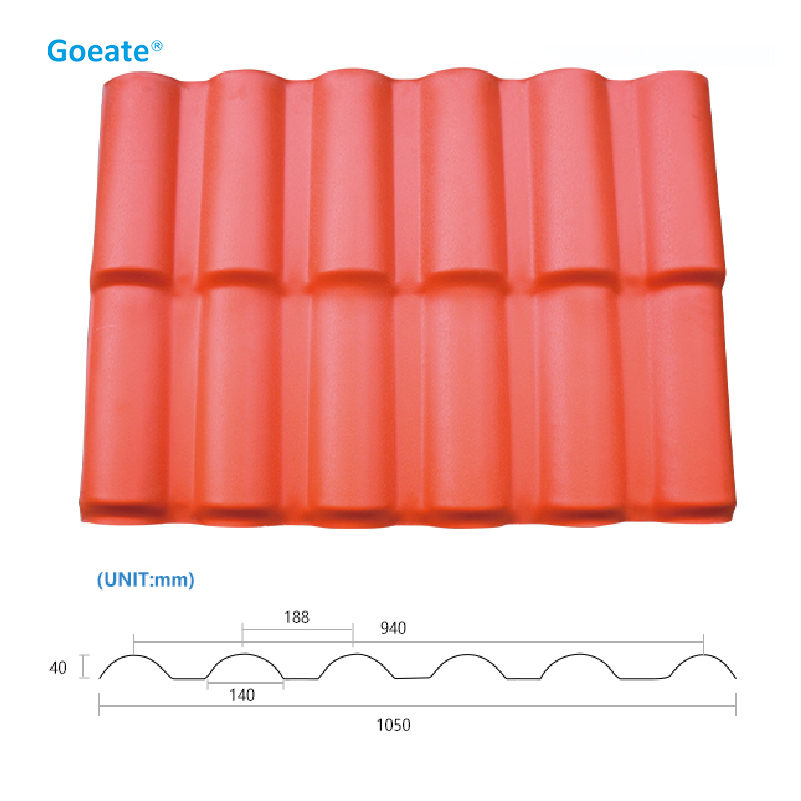

| Type | Roma Resin Roof Tile | ||
| Color | Red, Orange, Blue, Green, Gray, etc. | ||
| Total Width | 1050mm | ||
| Effective Width | 940mm | ||
| Length | Customized (must be accorded to the times of 328mm) | ||
| Thickness | 2.0±0.1mm | 2.5±0.1mm | 3.0±0.1mm |
| Weight | 4.0±0.1 (kg/m2) | 5.0±0.1 (kg/m2) | 6.0±0.1 (kg/m2) |
| Wave Distance | 188(mm) | ||
| Wave Height | 40(mm) | ||
| Pitch | 328(mm) | ||
| Container Loading capacity | Thickness (mm) | SQ.M./20 FCL (28 tons) | SQ.M./40 FCL (28 tons) |
| 2.0 | 6500 | 6500 | |
| 2.5 | 5500 | 5500 | |
| 3.0 | 4500 | 4500 | |
