Goeate/Gaozhu synthetic resin tiles include classical styles and Chinese-style decorative tiles. They adopt high weather-resistant ASA engineering plastic (SABIC ASA raw material, sourced from one of the world’s top 500 enterprises) and PVC (polyvinyl chloride resin) as the main raw materials, blended with anti-UV agents, light stabilizers, antioxidants and special weather-resistant modifiers for superior outdoor performance.
Manufactured with advanced European triple co-extrusion one-step forming technology, the tile features a three-layer structural design:
- Surface layer: High weather-resistant ASA protective layer
- Middle layer: High-strength structural backbone layer
- Bottom layer: Wear-resistant protective layer
Product Feature
1. 25-Year Service Life Warranty & 10-Year Color Retention Warranty Made of imported high weather-resistant engineering resin, our tiles deliver outstanding durability in complex natural environments. They maintain stable color and surface performance under long-term exposure to UV radiation, moisture, high heat and extreme cold.
2. Outstanding Corrosion Resistance The tiles resist erosion from acids, alkalis and salts. Test results show no chemical reaction occurs after being soaked in solutions below 60% concentration for 2 hours. They are highly suitable for coastal zones and regions with frequent acid rain.
3. Reliable Sound & Thermal Insulation The optimized wave structure provides excellent noise absorption against heavy rain and strong winds, while maintaining stable thermal insulation to improve indoor comfort.
4. High Fire Retardancy Certified B1 fire-retardant grade by national fire authorities, the material features self-extinguishing properties and meets standard building safety requirements.
5. Superior Load-Bearing Performance In cold climates, the tiles remain intact without cracking or surface damage under year-round snow cover. Professional tests confirm no deformation or breakage under a 150kg load with a support spacing of 660mm.
Core Advantages
The tiles feature elegant 3D stereo shapes and exclusive Chinese-style color tones. They are eco-friendly, non-toxic and compliant with modern green building standards.
Application

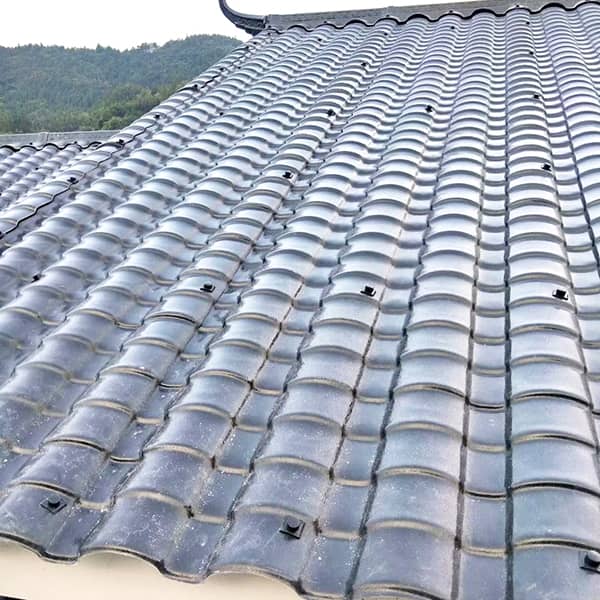

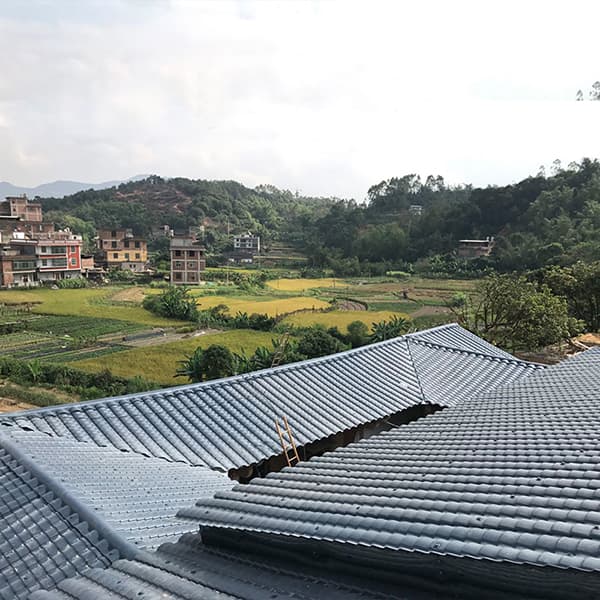

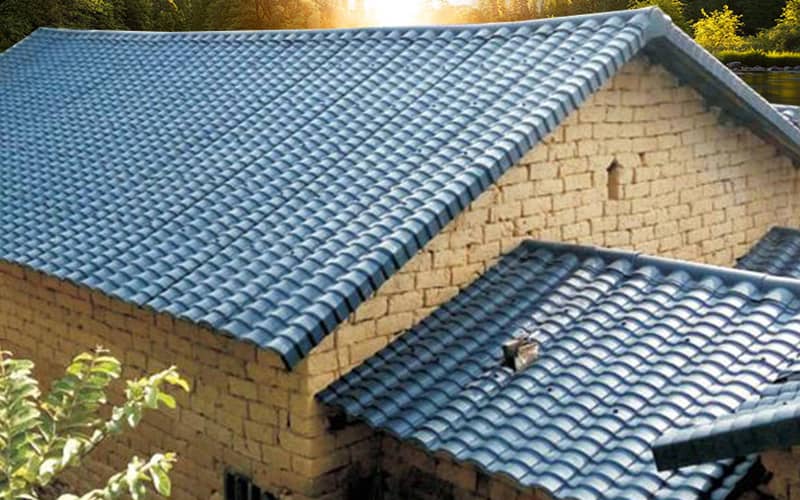

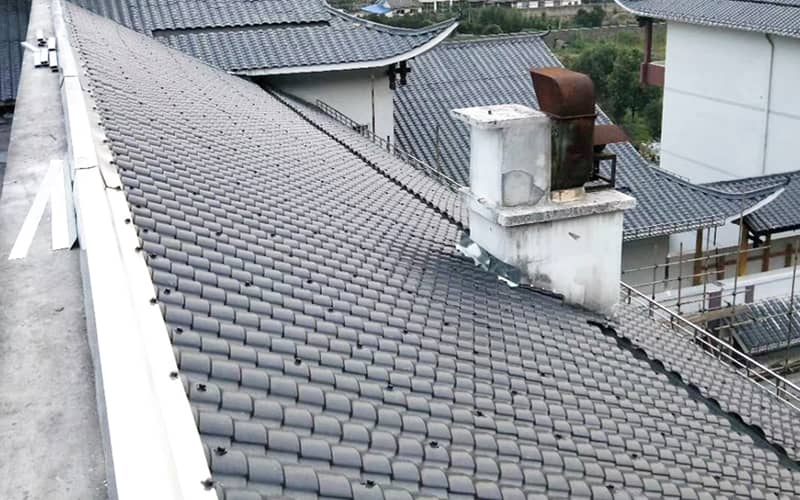

Ideal for villas, residential roofs, rural beautification projects, tourist attractions, old house renovations and landscape gardens.
Installation Instructions
- Purlins can be square tubes (60×40×3 mm), steel sections (100×50×20×3 mm) or anti-corrosion battens (60×40 mm).
- The spacing between purlins is 660 mm. Purlins are fitted from bottom to top.
- Consider the local prevailing wind direction and install main tiles against the wind. Lift one tile wave and perform the operation on both sides simultaneously. When fitting main ridge tiles, cut a section from the first ridge tile before installation.
- During installation, the joint between main ridge tiles and inclined ridge tiles shall be trimmed for a smooth finish. Mount main ridge tiles and inclined ridge tiles prior to fitting the 3-way tee fitting. Fasteners are dedicated special accessories.
- For fixing: pre-drill holes. The hole diameter shall be 2–3 mm larger than the diameter of the fixing screw.
Parameter
| Type | Chinese-Style Resin Tile | ||

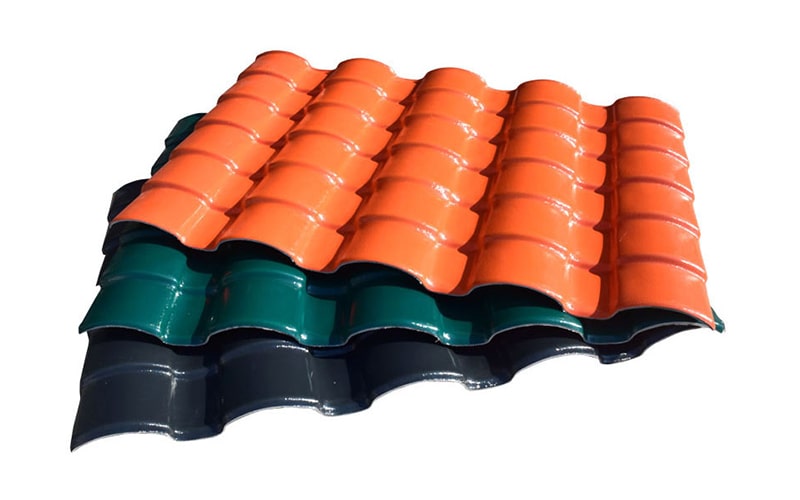

| Color | Red, Orange, Blue, Green, Gray, etc. | ||
| Total Width | 1050mm | ||
| Length | Customized (must be accorded to the times of 250mm) | ||
| Thickness | 2.0±0.1mm | 2.5±0.1mm | 3.0±0.1mm |
| Weight | 4.0±0.1(kg/m2) | 5.0±0.1(kg/m2) | 6.0±0.1(kg/m2) |
| Wave Distance | 160(mm) | ||
| Wave Height | 30(mm) | ||
| Pitch | 250(mm) | ||
| Container Loading capacity | Thickness(mm) | SQ.M./20 FCL (28 tons) | SQ.M./40 FCL (28 tons) |
| 2.0 | 6500 | 6500 | |
| 2.5 | 5500 | 5500 | |
| 3.0 | 4500 | 4500 | |
