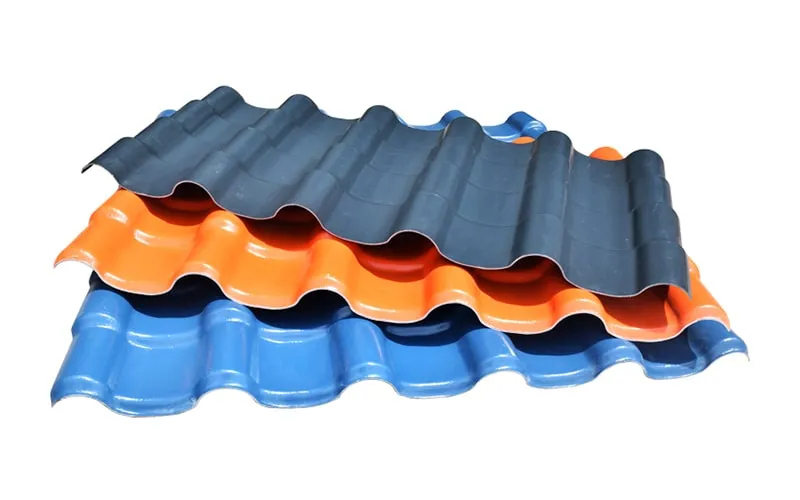

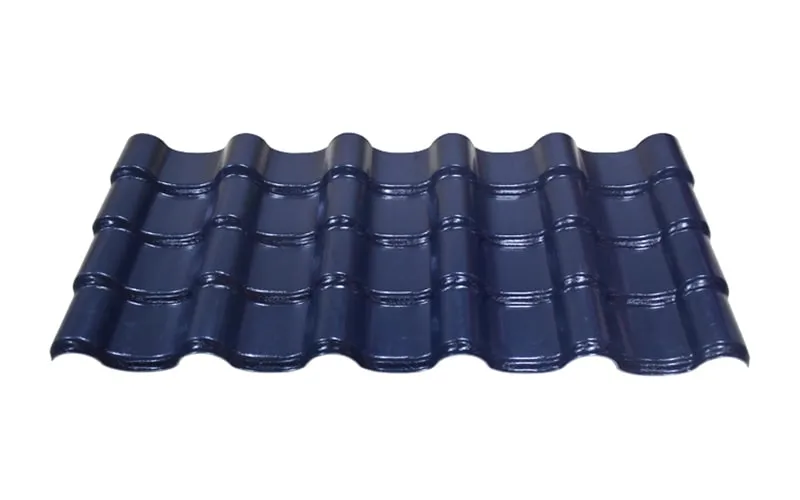

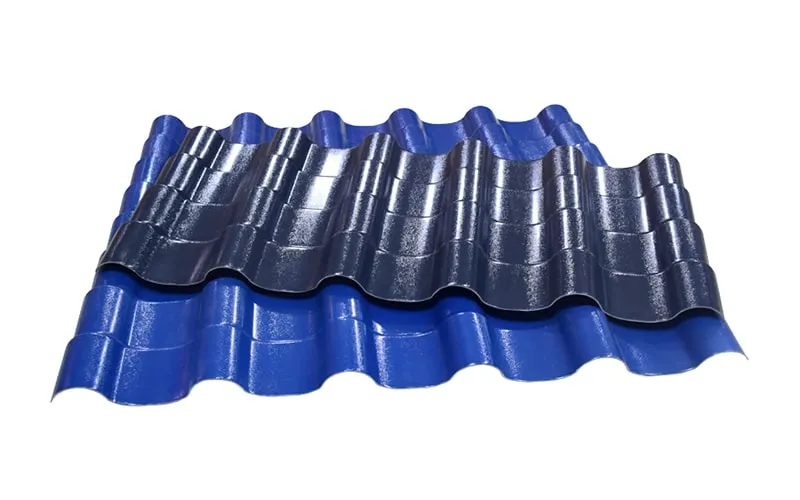

Goeate/Gaozhu synthetic resin tiles include classical and Chinese-style resin tiles. They are produced using high weather-resistant ASA engineering plastic (SABIC ASA material, from one of the world’s top 500 enterprises) and PVC (polyvinyl chloride resin) as primary raw materials. Anti-UV agents, light stabilizers, antioxidants, modifiers and other high-performance weather-resistant additives are blended into the formula.
The tile is manufactured with advanced European triple co-extrusion one-step forming technology, consisting of three layers:
- Surface layer: ASA layer
- Middle layer: Structural backbone layer
- Bottom layer: Abrasion-resistant layer
Core Advantages
Classical resin tiles feature timeless retro aesthetics, enhanced appearance, superior waterproof performance and higher structural strength.
Product Features
1. 25-Year Service Life Warranty & 10-Year Color Retention Warranty Made of imported high weather-resistant engineering resin, Goeate/Gaozhu synthetic resin tiles deliver exceptional durability in natural environments. Their color remains stable even after long-term exposure to ultraviolet radiation, moisture, high heat and extreme cold.
2. Excellent Corrosion Resistance The tiles resist corrosion from acids, alkalis and salts. Tests confirm no chemical reaction after 2 hours of immersion in acid, alkali and salt solutions with concentrations below 60%. Ideal for coastal regions and areas prone to acid rain.
3. Reliable Sound and Thermal Insulation Tests show the tiles offer great noise absorption against heavy rain and strong winds, alongside effective thermal insulation.
4. High Flame Retardancy Certified Class B1 flame-retardant grade by national fire authorities; it is a self-extinguishing building material.
5. Outstanding Load-Bearing Capacity For cold regions, the tile surface stays intact without cracking or damage even under year-round snow cover. Tests prove no cracks or damage occur under a 150kg load with purlin spacing of 660 mm.
Applications

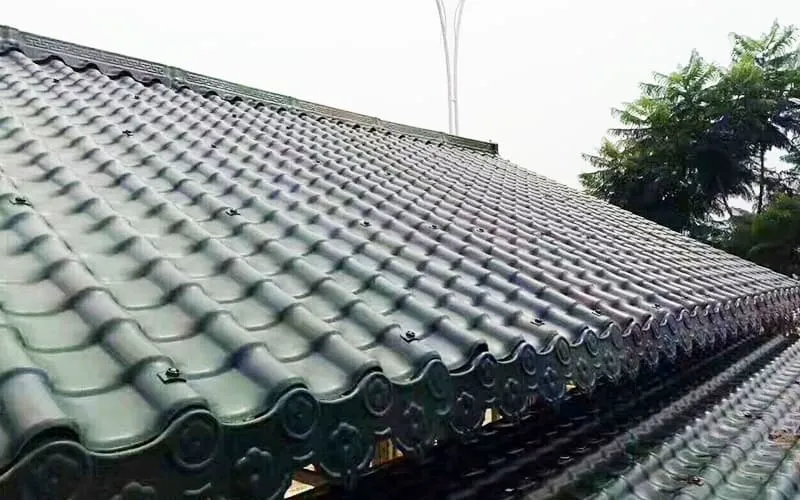

Villas, residential rooftops, rural beautification projects, tourist attractions, old house renovation, gardens, etc.
Installation Instructions
- Purlins can be square tubes (60×40×3 mm), steel sections (100×50×20×3 mm) or anti-corrosion battens (60×40 mm).
- The spacing between purlins is 660 mm. Purlins are fitted from bottom to top.
- Consider the local prevailing wind direction and install main tiles against the wind. Lift one tile wave and perform the operation on both sides simultaneously. When fitting main ridge tiles, cut a section from the first ridge tile before installation.
- During installation, the joint between main ridge tiles and inclined ridge tiles shall be trimmed for a smooth finish. Mount main ridge tiles and inclined ridge tiles prior to fitting the 3-way tee fitting. Fasteners are dedicated special accessories.
- For fixing: pre-drill holes. The hole diameter shall be 2–3 mm larger than the diameter of the fixing screw.
Parameter
| Type | Classical Resin Tile | ||
| Color | Red, Orange, Blue, Green, Gray, etc. | ||
| Total Width | 1030mm | ||
| Length | Customized (must be accorded to the times of 125mm) | ||
| Thickness | 2.0±0.1mm | 2.5±0.1mm | 3.0±0.1mm |
| Weight | 4.0±0.1 (kg/m2) | 5.0±0.1 (kg/m2) | 6.0±0.1 (kg/m2) |
| Wave Distance | 190(mm) | ||
| Wave Height | 35(mm) | ||
| Pitch | 125(mm) | ||
| Container Loading capacity | Thickness (mm) | SQ.M./20 FCL (28 tons) | SQ.M./40 FCL (28 tons) |
| 2.0 | 6500 | 6500 | |
| 2.5 | 5500 | 5500 | |
| 3.0 | 4500 | 4500 | |
