Goeate/Gaozhu synthetic resin tiles cover classical and Chinese-style series. They are manufactured with high weather-resistant ASA engineering plastic (SABIC ASA raw material from one of the world’s top 500 enterprises) and PVC (polyvinyl chloride resin) as primary raw materials, blended with anti-UV agents, light stabilizers, antioxidants, modifiers and other high-performance weather-resistant additives.

The tile is produced via advanced European triple co-extrusion one-step forming technology with a 3-layer structure:

1. Surface layer: ASA layer
2. Middle layer: Structural backbone layer
3. Bottom layer: Abrasion-resistant layer

Product Features

1. 25-Year Service Life Warranty & 10-Year Color Retention Warranty Made of imported high weather-resistant engineering resin, Goeate/Gaozhu synthetic resin tiles deliver exceptional durability in natural environments. Their color remains stable even under long-term exposure to ultraviolet radiation, moisture, high heat and extreme cold.

2. Excellent Corrosion Resistance The tiles resist corrosion by acids, alkalis and salts. Tests confirm no chemical reaction after 2 hours of immersion in acid, alkali and salt solutions with concentrations below 60%. They are ideal for coastal regions and areas with frequent acid rain.

3. Reliable Sound and Thermal Insulation Tests show the roof tiles have good noise absorption against heavy rain and strong winds, together with effective thermal insulation performance.

4. High Flame Retardancy Certified Class B1 flame-retardant grade by national fire authorities. It is a flame-retardant building material.

5. Outstanding Load-Bearing Capacity In cold regions, the tile surface stays intact without cracking or damage even under year-round snow cover. Tests prove no cracks or damage occur under a 150kg load when the support spacing is 660 mm.

Core Characteristics

Synthetic resin tiles adopt advanced European co-extrusion technology. Using high weather-resistant ASA engineering plastic and PVC (polyvinyl chloride resin) as main raw materials, the formula incorporates anti-UV agents, light stabilizers, antioxidants, modifiers and other high-performance weather-resistant additives.

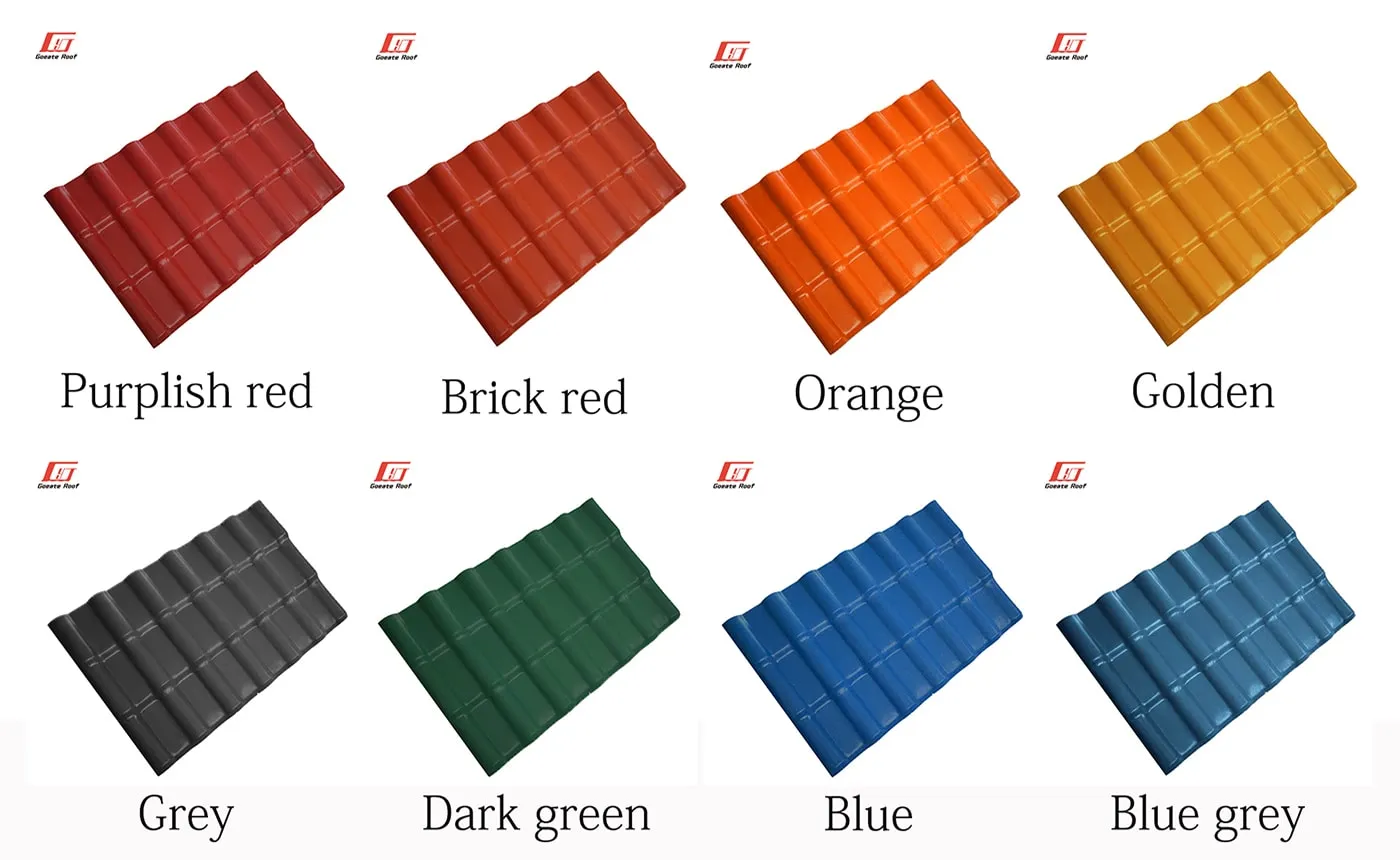

Color

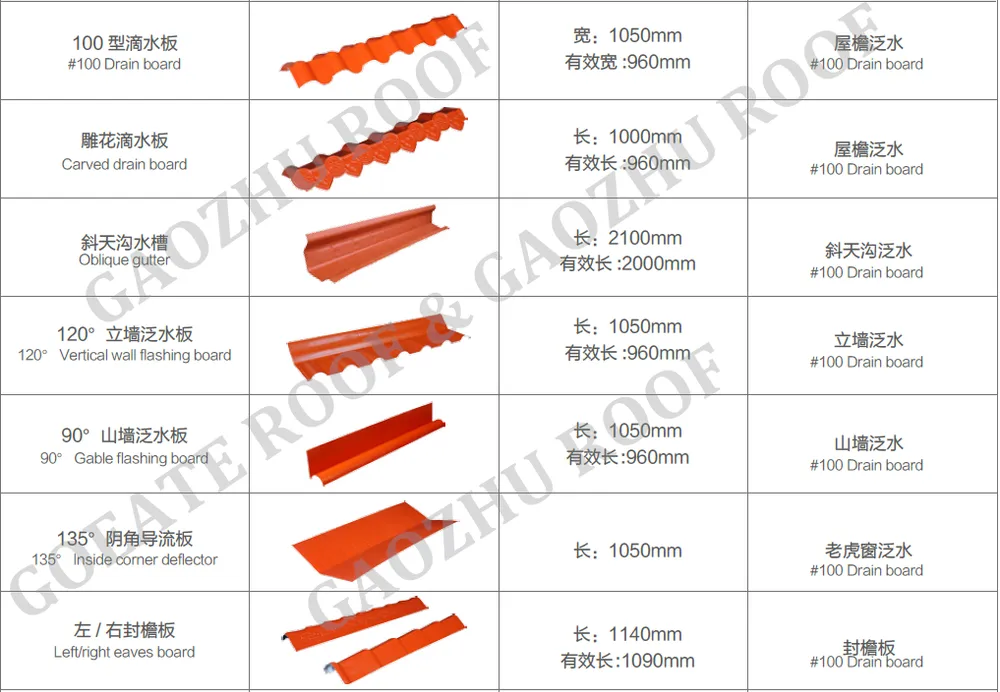

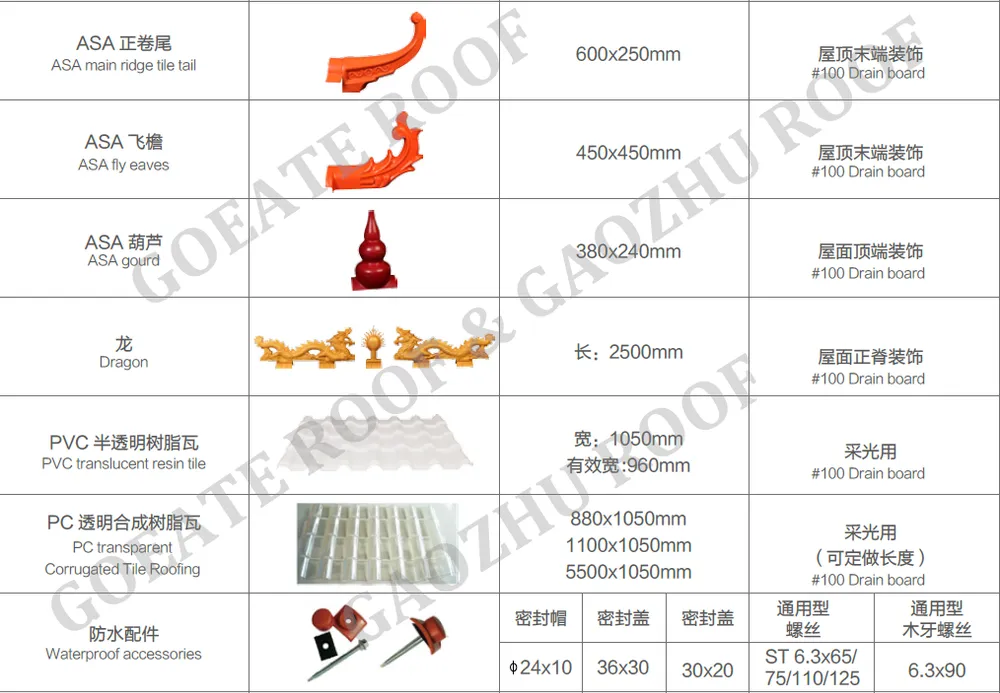

Accessories

Installation Instructions

1. Supporting purlins can adopt square tubes (60×40×3 mm), steel sections (100×50×20×3 mm), or anti-corrosion battens (60×40 mm).
2. The standard purlin spacing is 660 mm. Install all purlins from bottom to top.
3. Install main tiles against the local prevailing wind direction. Lift one tile wave and align both sides simultaneously. For main ridge tile installation, trim the edge of the first ridge tile before fitting.
4. Trim and level the joints between main ridge tiles and inclined ridge tiles for a neat finish. Install main and inclined ridge tiles first, then fit the 3-way tee accessory. All fasteners are professional dedicated fittings.
5. During fixation, pre-drill mounting holes. The hole diameter should be 2–3 mm larger than the screw diameter.

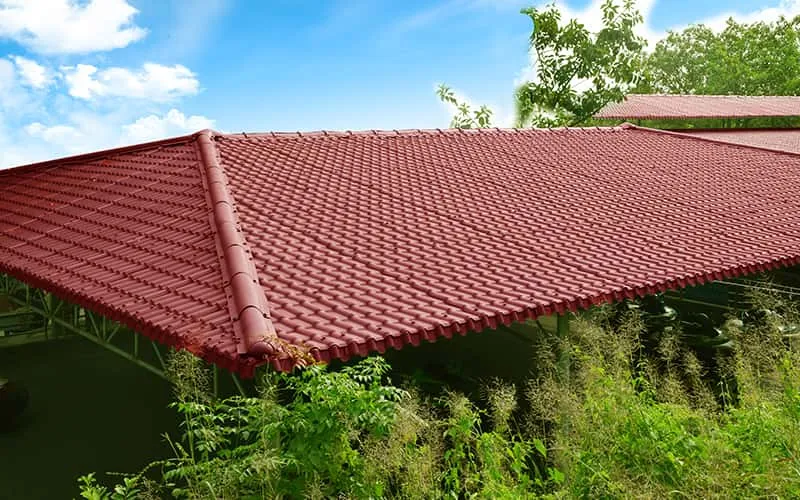

Applications

Widely applied in beautiful countryside upgrading, old house renovation and reconstruction, tourist attractions, gardens, villas, prefabricated houses, pavilions, farms, and flat-to-slope roof conversion projects.

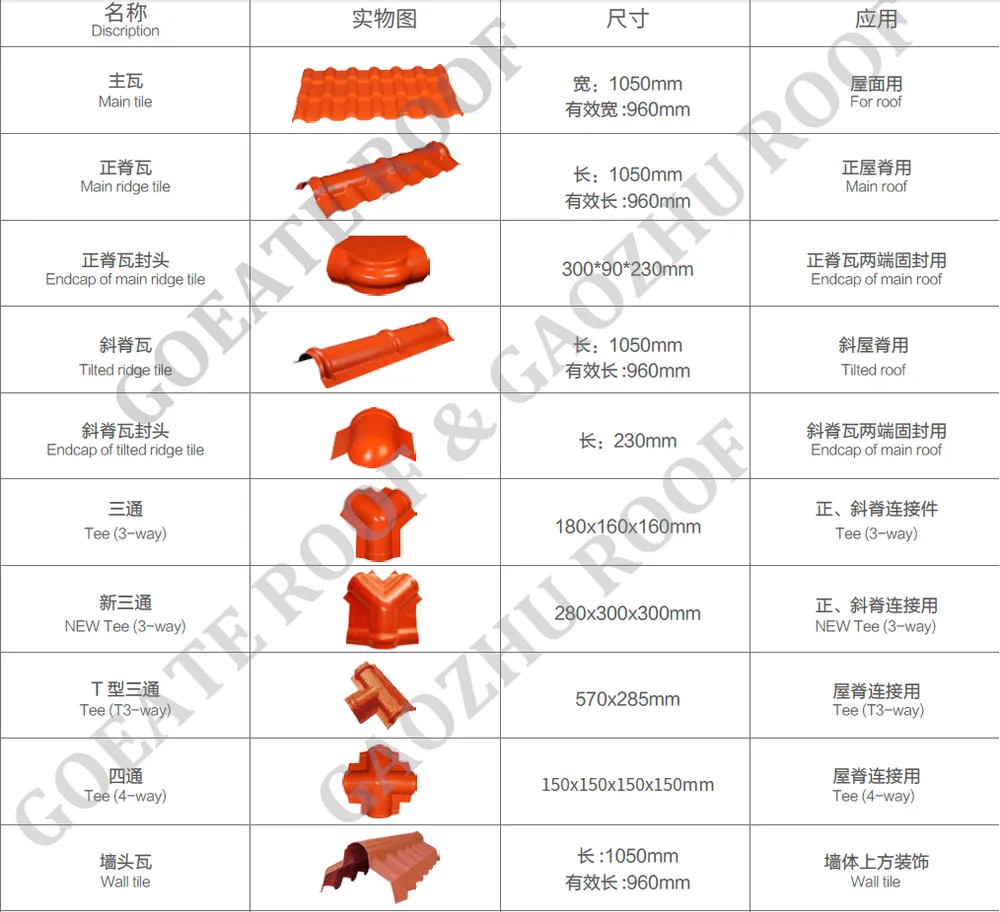

Parameter
